Oasis 2600

Insolroll's oasis 2600 patio shade is a manual operated sun shade that is designed to block the sun's glare, while maintaining your outward view. When this shade is deployed the bottom hem bar is held in place by a bungee hook system.

Options

Fabric's

Insolroll offers a large selection of fabric colors, styles and textures to meet every sun shade application. For outdoor durability, all of our Oasis fabrics utilize a PVC-coated fiberglass or polyester mesh ranging in openness from 3% to 48%.

Bungee Hold-down

3/16″ x 8″ bungee cord (un-stretched) Hempocket is pre-drilled for D-ring to be attached by nut and bolt. Mount D-ring to vertical or horizontal surface no more than 45 degrees from vertical.

Operation

Oasis 2600 Patio Sun Shades are operated by an exterior-grade clutch system with stainless steel idler, heavy duty locking idler bracket. Flexible mounting options surface, side, or ceiling mounting capabilities. We make our Oasis 2600 Patio Sun Shades up to 10′ wide.

Additional Details

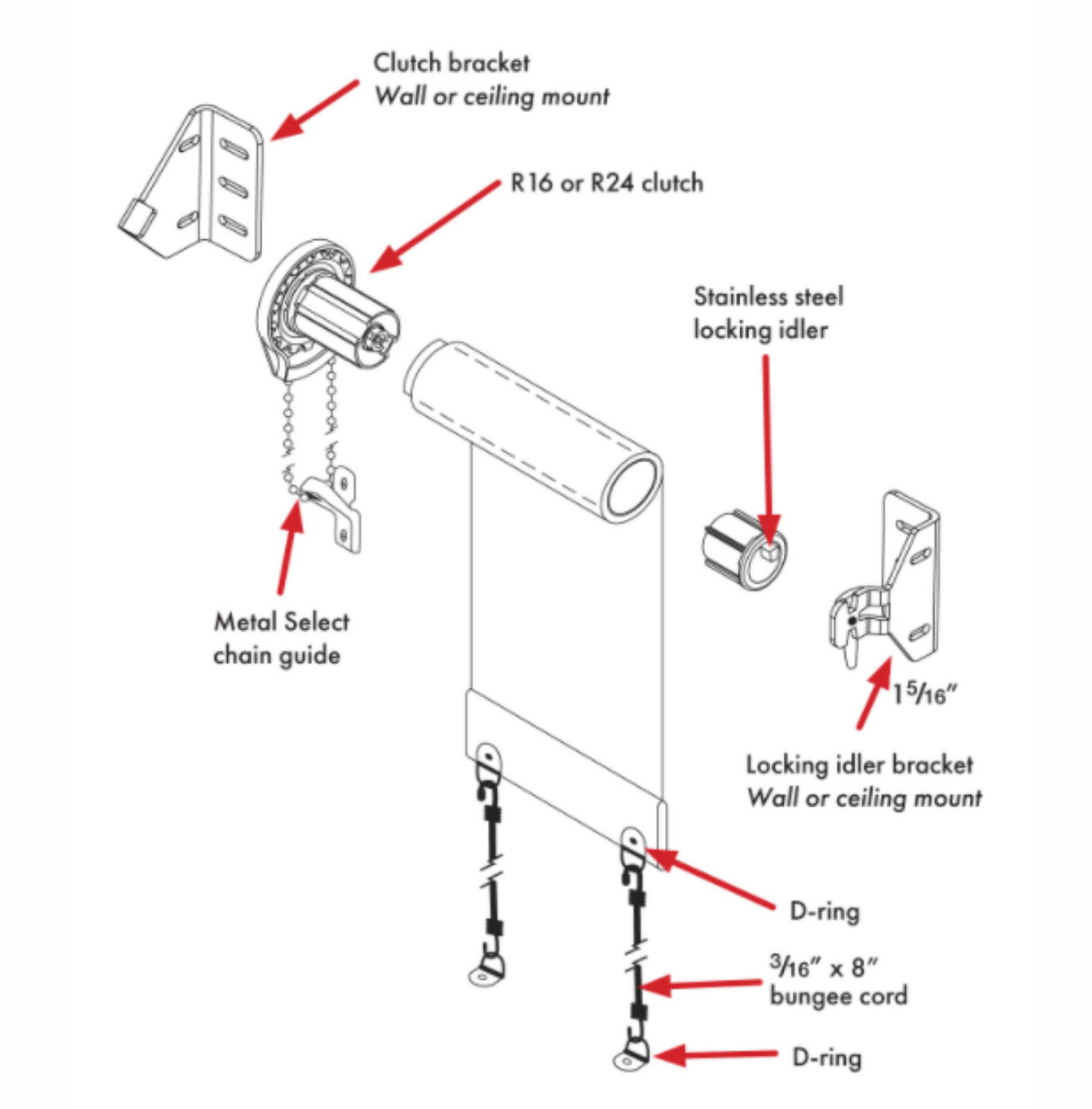

01. 2600 Patio Shade Exploded Drawing

Oasis 2600 Patio Sun Shades are designed to perform outdoors. With an exterior-grade clutch system, stainless steel idler, heavy duty locking idler bracket. This manual patio shade is a great shade to cover smaller to mid size openings and patios.

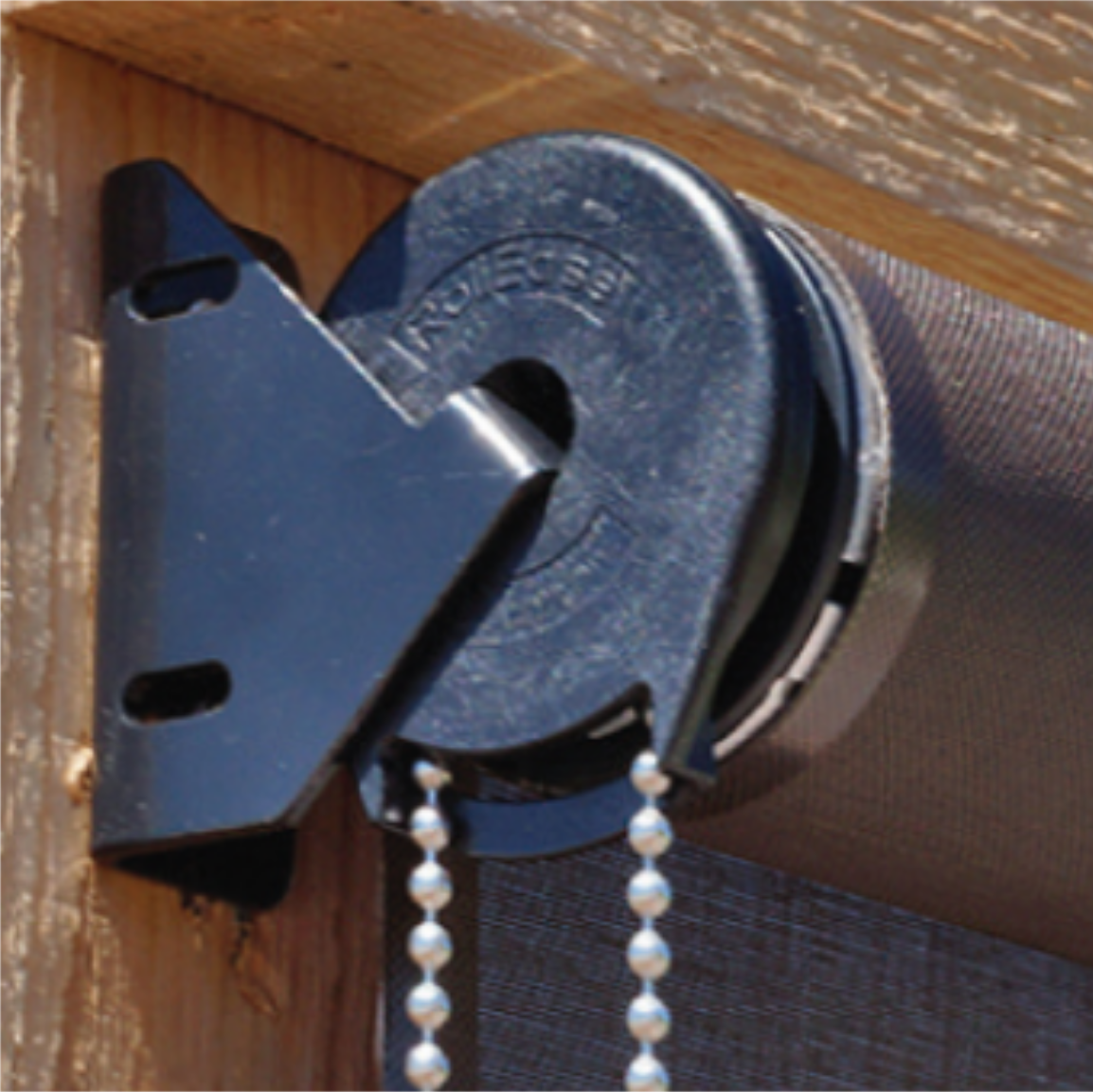

02. Continuous Loop Operation

The 2600, is operated by a continuous loop beaded chain that runs through a commercial grade clutch. Providing enough power to safely operate shades up to 10 feet wide.

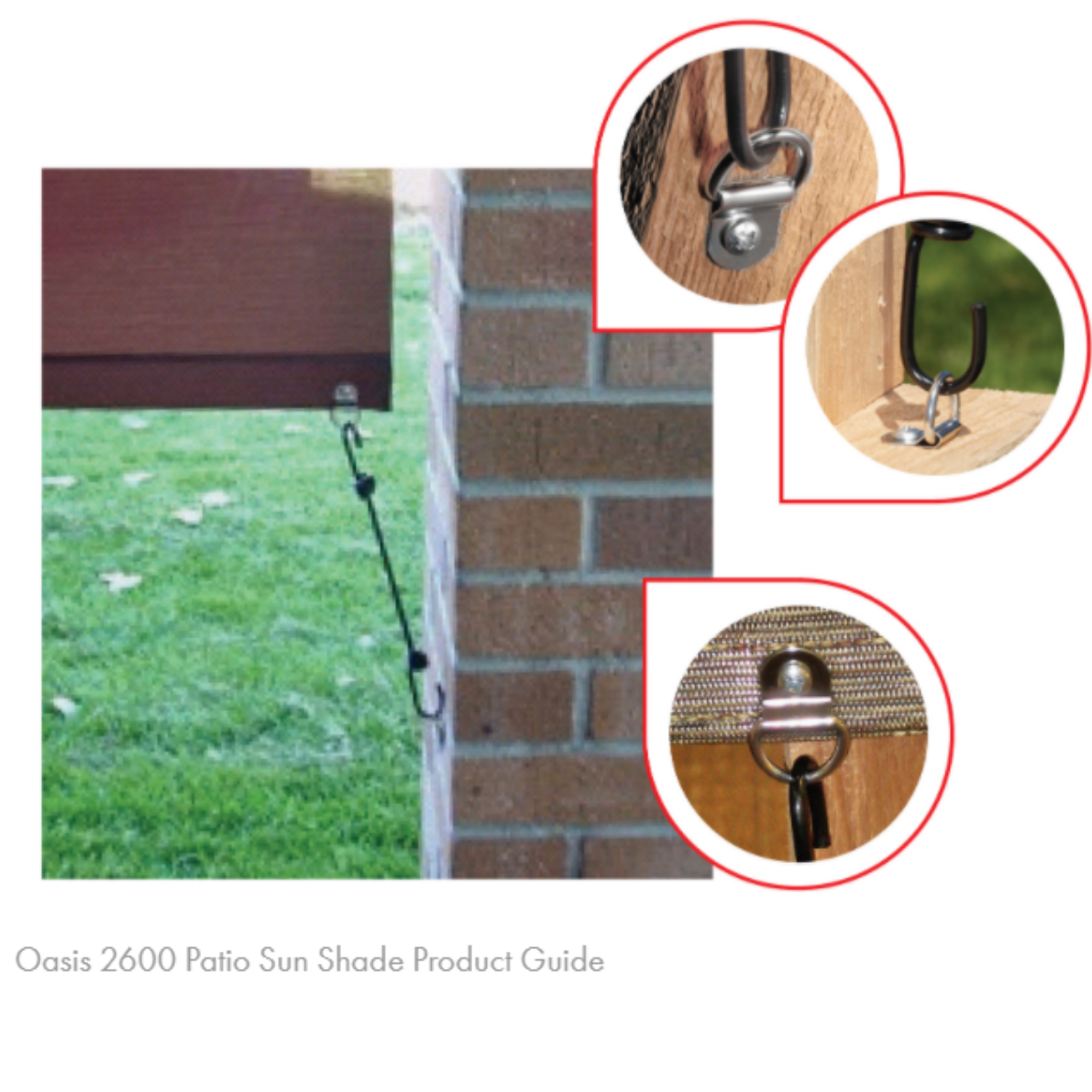

03. Bungee Cord System

The bungee cord system is simple and effective. Bungee cords are attached to D-rings on the hem bar and wall or deck, and flexibly keep your shade in place, minimizing movement.
